Reverse engineering binaries for embedded devices like the Arduino can provide valuable insights for security researchers, but documentation on how to do so — especially using tools like Ghidra — is surprisingly limited. This post will provide a short introduction to the architecture and serve as a starting point for the analysis. As of April 2024, Ghidra’s support for the ATmega328P (used by the Arduino Uno) is still evolving, which we’ll explore in detail.

Disclaimer: At daytime, I work in offensive IT security, which requires some level of reverse engineering, however mostly of high-level binaries (Linux and Windows). I also have some experience with microcontrollers, but I am by no means a well-versed embedded systems (reverse) engineer.

Test Setup Link to heading

I will be working with the Arduino Uno Rev 3. In the future I might also explore other Arduino models and Arduino-like platforms, for example the Arduino Micro or the ESP8266.

Also, I will be using the example project “ASCIITable” that is shipped with the Arduino IDE. You can find its source code on GitHub if you want to cheat follow along, but I will not expect any familiarity with the project.

Dumping the Flash Link to heading

The binary can be dumped from the Arduino’s flash with the tool avrdude that is shipped with the Arduino SDK1:

avrdude "-C/etc/avrdude.conf" -v -V -patmega328p -carduino -P/dev/ttyUSB1 -b115200 -D "-Uflash:r:blogpost.bin:r"

If you would like to reproduce this, you might need to change /dev/ttyUSB1 for the serial port that the Arduino is registered at, which you can list using ls /dev/ttyUSB*. The same also works on Windows, where the serial port is called something like COM1.

The invocation generates the file blogpost.bin which contains the flash contents as raw binary. If you obtained the flash contents in Intel HEX format (which is a bit more common), you could convert this file to a raw binary using the following command2:

objcopy --input-target=ihex --output-target=binary blogpost.hex blogpost.bin
Example
If you just want to follow along, you can also download my blogpost.bin.

Ghidra Preparation Link to heading

At the heart of the Arduino Uno is the AVR (formerly Atmel) ATmega328P 8-bit microcontroller (datasheet).

Info
“8 bit” in this context means that operations handle 8 bits at a time (0 to 255, or -127 to 128). Registers are also 8 bits wide. As 8 bits are insufficient for storing pointers, which are at least 16 bits in size, pointers are usually stored in pairs of registers.

Unfortunately, Ghidra does not directly support the ATmega328P. The good news is, though, that it supports similar AVR 8-bit microcontrollers and GitHub user @ahroach already wrote helper files to retrofit ATmega328P support.

First, place the file github.com/ahroach/avr_ghidra_helpers/atmega328.pspec in the directory Ghidra/Processors/Atmel/data/languages. Then, modify the file Ghidra/Processors/Atmel/data/languages/avr8.ldefs and add the <language> tag highlighted in the following listing:

<?xml version="1.0" encoding="UTF-8"?>

<language_definitions>
<!-- [...] -->

  <language processor="AVR8"
            endian="little"
            size="16"
            variant="atmega328"
            version="1.0"
            slafile="avr8eind.sla"
            processorspec="atmega328.pspec"
            manualindexfile="../manuals/AVR8.idx"
            id="avr8:LE:16:atmega328">
    <description>AVR8 for an Atmega 328</description>
    <compiler name="gcc" spec="avr8egcc.cspec" id="gcc"/>
    <external_name tool="gnu" name="avr:51"/>
    <external_name tool="gnu" name="avr:6"/>
    <external_name tool="IDA-PRO" name="avr"/>
  </language>

<!-- [...] -->
</language_definitions>

Restart Ghidra and you should be able to import files for the atmega328 architecture configuration.

Analysis in Ghidra Link to heading

Although the following sections certainly assume that you have some basic Ghidra knowledge, I will walk you through the initial analysis:

  1. After starting Ghidra, create a new project using File > New Project
  2. Select “Non-Shared Project”
  3. Choose a parent “Project Directory” (Warning: this directory will be cluttered with a few files) and a project name
  4. Import the dumped .bin file, either via drag-and-drop or by choosing File > Import File from the menu.

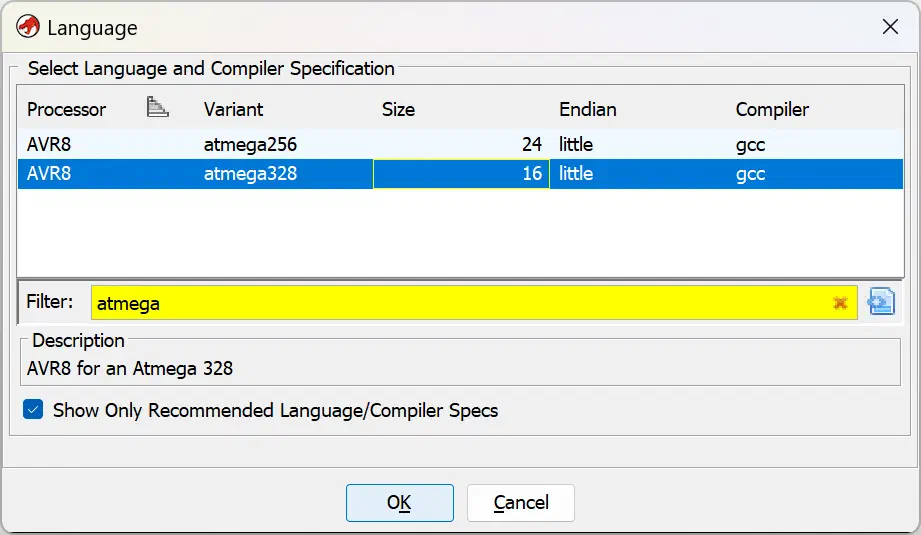

  5. Click on “…” next to “Language” and select “AVR8 / atmega328 / 16 / little / gcc”: Language Selection
  6. Confirm all dialogs with OK
  7. Double-click the imported file to open it in Ghidra’s CodeBrowser
  8. Ghidra will ask whether to analyze - keep the default options and click Analyze

You should now see the program’s memory in Ghidra’s CodeBrowser.

Interrupt Vector Table Link to heading

A good starting point for understanding the program is the Interrupt Vector Table. This table is usually located at the address 0x00000000 and consists of several jmp instructions (so-called interrupt handlers) that the processor calls when an interrupt occurs, i.e. “something important happens”. The table from the ATmega258P datasheet lists the expected entries.

Show Interrupt Vector Table
Program AddressSourceInterrupt Definition
0x0000RESETExternal pin, power-on reset, brown-out reset and watchdog system reset
0x0002INT0External interrupt request 0
0x0004INT1External interrupt request 1
0x0006PCINT0Pin change interrupt request 0
0x0008PCINT1Pin change interrupt request 1
0x000APCINT2Pin change interrupt request 2
0x000CWDTWatchdog time-out interrupt
0x000ETIMER2COMPA Timer/Counter2 compare match A
0x0010TIMER2COMPB Timer/Counter2 compare match B
0x0012TIMER2OVF Timer/Counter2 overflow
0x0014TIMER1CAPT Timer/Counter1 capture event
0x0016TIMER1COMPA Timer/Counter1 compare match A
0x0018TIMER1COMPB Timer/Counter1 compare match B
0x001ATIMER1OVF Timer/Counter1 overflow
0x001CTIMER0COMPA Timer/Counter0 compare match A
0x001ETIMER0COMPB Timer/Counter0 compare match B
0x0020TIMER0OVF Timer/Counter0 overflow
0x0022SPI, STCSPI serial transfer complete
0x0024USART, RXUSART Rx complete
0x0026USART, UDREUSART, data register empty
0x0028USART, TXUSART, Tx complete
0x002AADCADC conversion complete
0x002CEE READYEEPROM ready
0x002EANALOGCOMP Analog comparator
0x0030TWI2-wire serial interface
0x0032SPM READYStore program memory ready

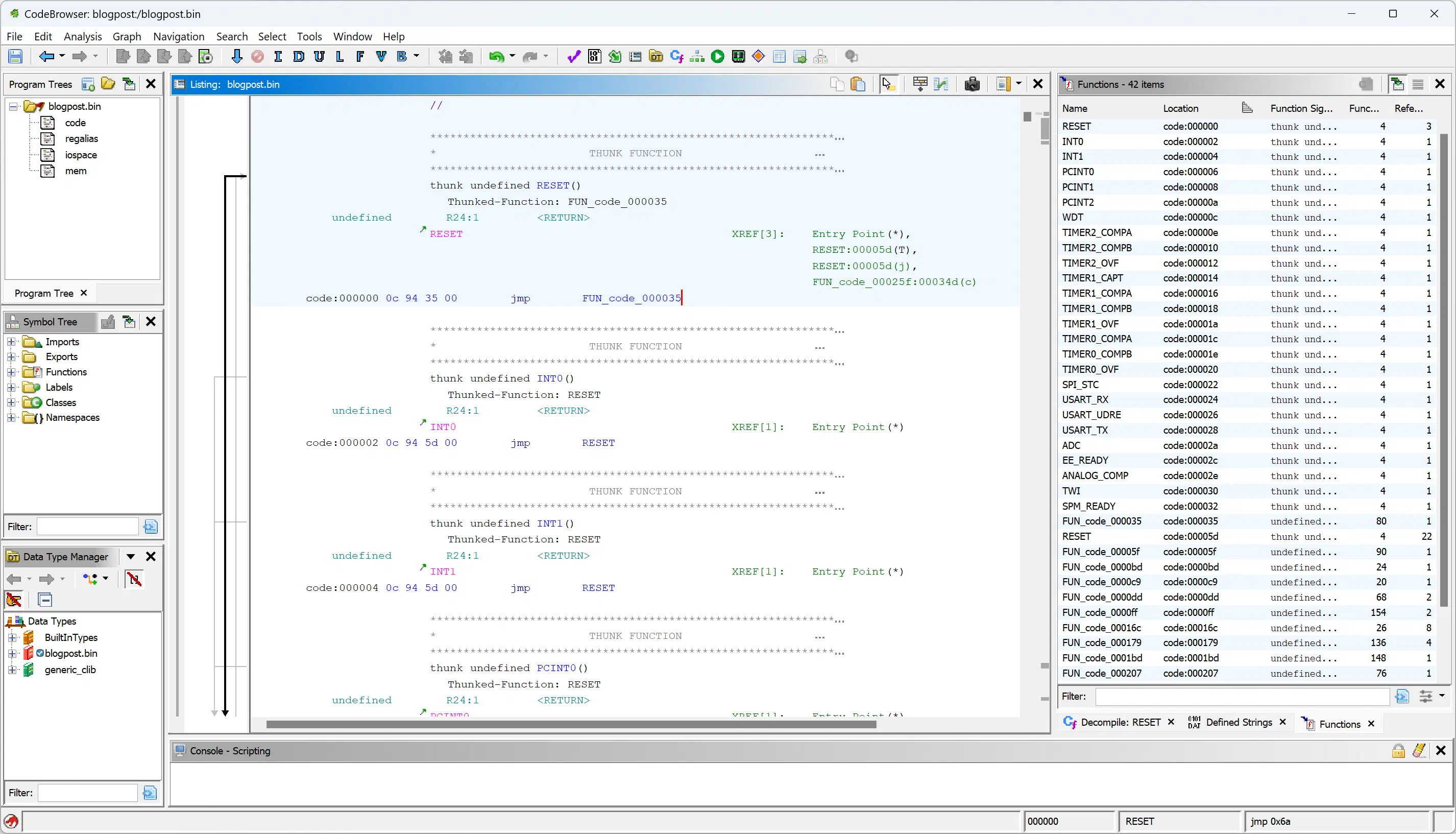

And indeed, we can find this table in the disassembly: IVT Table in Ghidra CodeBrowser

The RESET Interrupt Handler Link to heading

Let’s now inspect the RESET interrupt handler, FUN_code_000035:

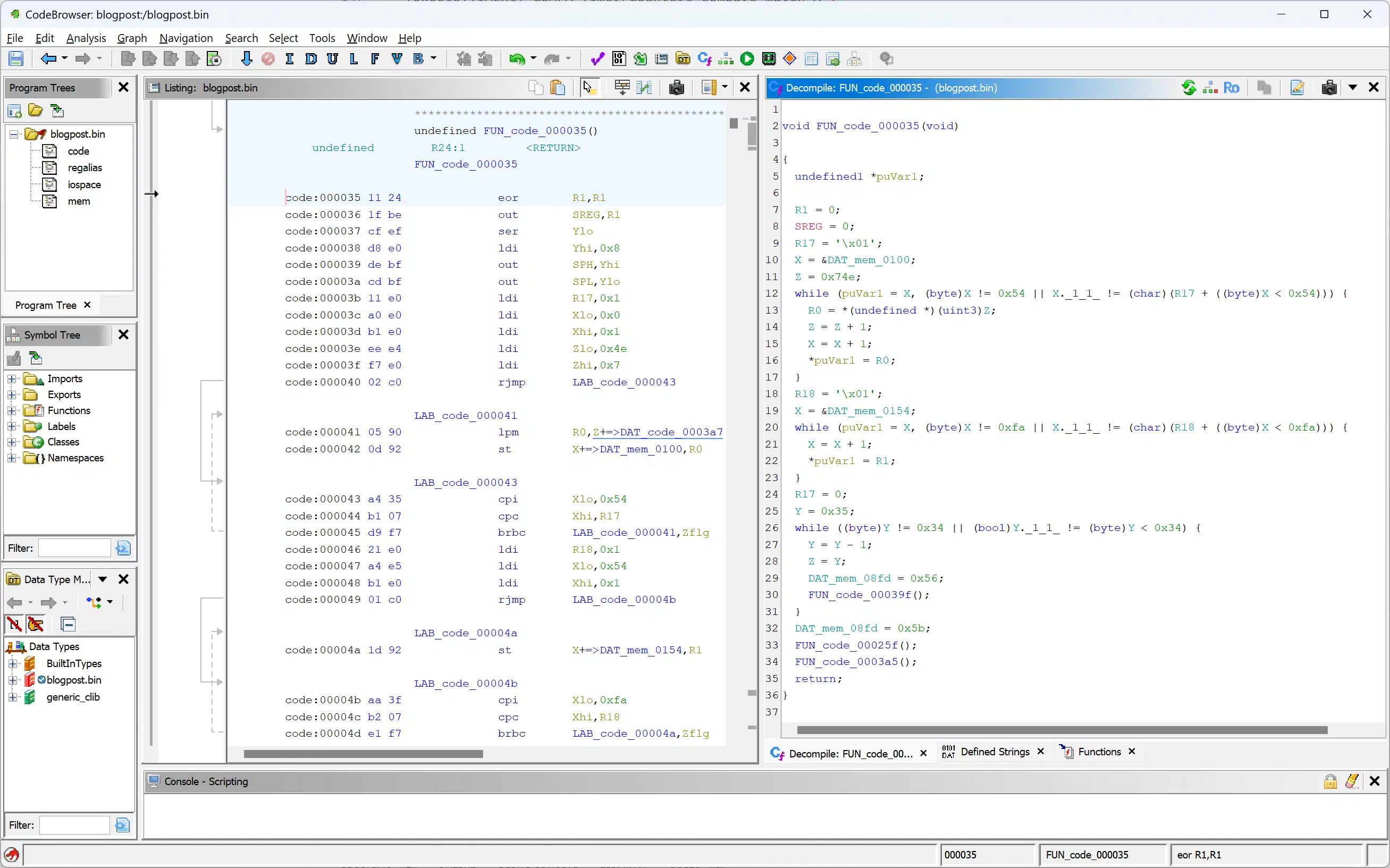

RESET function

Before actually doing something interesting, this function initializes the program’s memory, just like an ELF/PE loader would do:

void FUN_code_000035(void)

{
  // [...]
  R1 = 0;

  X = &DAT_mem_0100;
  Z = 0x74e;
  while (puVar1 = X, (byte)X != 0x54 || X._1_1_ != (char)(R17 + ((byte)X < 0x54))) {
    R0 = *(undefined *)(uint3)Z;
    Z = Z + 1;
    X = X + 1;
    *puVar1 = R0;
  }

  R18 = 1;
  X = &DAT_mem_0154;
  while (puVar1 = X, (byte)X != 0xfa || X._1_1_ != (char)(R18 + ((byte)X < 0xfa))) {
    X = X + 1;
    *puVar1 = R1;
  }

  R17 = 0;
  Y = 0x35;
  while ((byte)Y != 0x34 || (bool)Y._1_1_ != (byte)Y < 0x34) {
    Y = Y - 1;
    Z = Y;
    _DAT_mem_08fd = 0x56;
    FUN_code_00039f();
  }

  // [...]
}

The first highlighted block copies 0x54 bytes from the raw file offset 0x7e4 to the memory block starting at 0x0100. This procedure is called __do_copy_data, as it loads a .data section. The corresponding (assembler) code can be found in GCC’s source code.

The second block erases 0xfa bytes in memory, starting from the offset 0x154, directly after the data segment. This is called __do_clear_bss and is also added by GCC. The .bss section contains initial values for static variables.

The third block is a bit more complicated, but can be ignored for now. It is called __do_global_ctors and calls global constructors.

Note that not all RESET interrupt handlers will contain all three of these blocks. GCC will add them if necessary, and thus some simple programs without global state will not have them.

In any case, we can use the offsets and lengths to further refine the memory map: Open the Memory Map window through the Window menu. Delete the auto-generated mem section. Then, add two sections, one data and one bss as shown in the following two screenshots. Make sure to fill in the offsets and lengths determined in the step above:

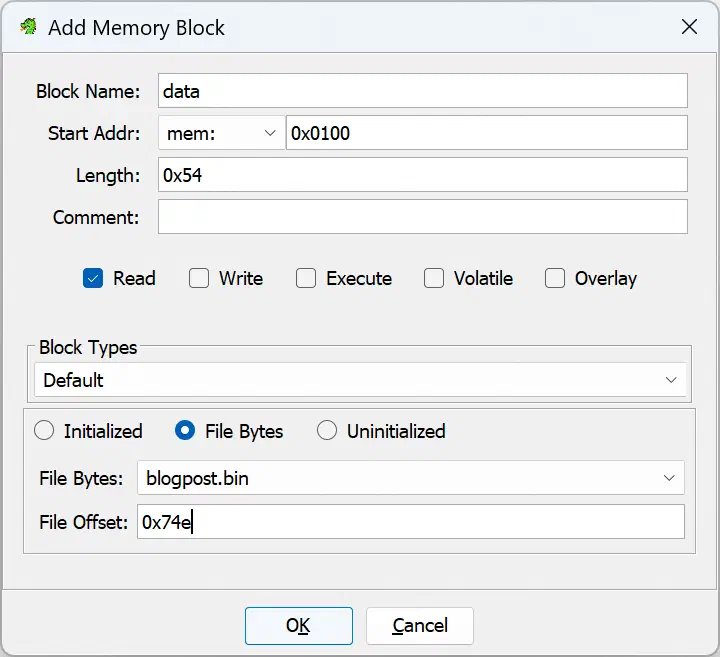

New Data Section

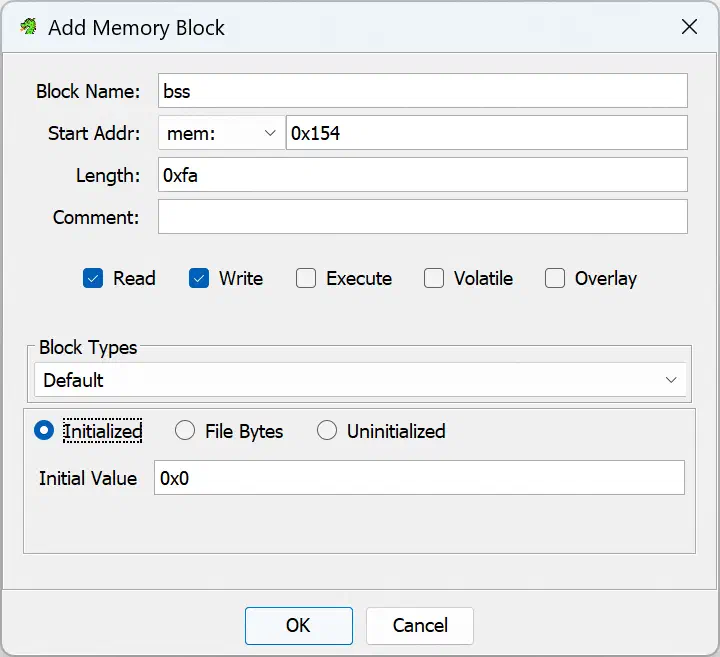

New BSS Section

Eventually, your memory map should look like this:

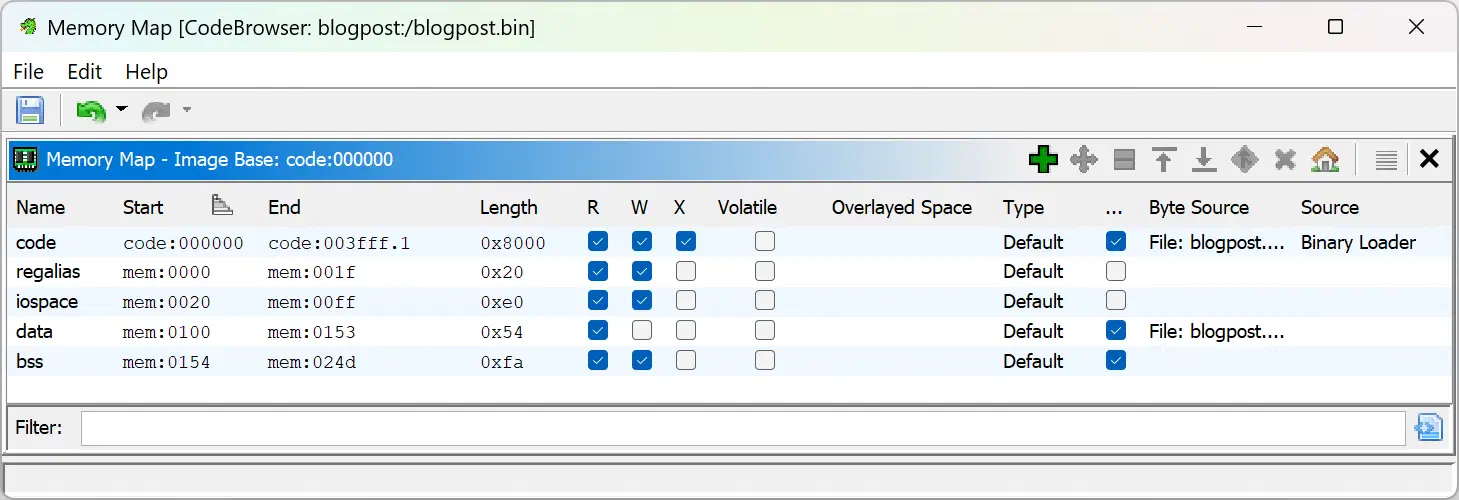

Memory Map

Note that I configured the data section as read-only because it yielded better results in my case. I don’t know if GCC will ever put any variable data in that area.

You may need to rerun the analysis in order for Ghidra to pick up on data structures in the data section (menu Analysis > Auto Analyze ‘blogpost.bin’…).

Info
Because I name all labels and functions that I’ve figured out during analysis, you may see labels such as __do_copy_data in subsequent screenshots and listings.

Main Function Link to heading

There are two remaining functions called in the RESET interrupt handler, in my case FUN_code_00025f and FUN_code_0003a5. The latter is a simple infinite empty loop, which GCC calls exit:

void exit(void)
{
  do {
                    /* WARNING: Do nothing block with infinite loop */
  } while( true );
}

The first function is the main function. However, as you might know, the Arduino IDE does not let you write a main function yourself, but instead requires you write the setup and loop callbacks. These are called directly by the main function, which can be found in the file cores/arduino/main.cpp:

int main(void)
{
  init();
  initVariant();

  setup();
  for (;;) {
    loop();
    if (serialEventRun) serialEventRun();
  }

  return 0;
}

In our case, GCC appears to have inlined init, initVariant, setup and loop. Therefore, the main function starts with a quite repetitive initializer code:

void main(void)
{
  byte bVar1;

  R25R24._0_1_ = TCCR0A;
  R25R24._0_1_ = (byte)R25R24 | 2;
  TCCR0A = (byte)R25R24;
  R25R24._0_1_ = TCCR0A;
  R25R24._0_1_ = (byte)R25R24 | 1;
  TCCR0A = (byte)R25R24;
  R25R24._0_1_ = TCCR0B;
  R25R24._0_1_ = (byte)R25R24 | 2;
  TCCR0B = (byte)R25R24;
  R25R24._0_1_ = TCCR0B;
  R25R24._0_1_ = (byte)R25R24 | 1;
  TCCR0B = (byte)R25R24;
  R25R24._0_1_ = TIMSK0;
  R25R24._0_1_ = (byte)R25R24 | 1;

  // [...]
}

These lines set up the timer prescaler values, according to the init function in wiring.c (here inlined). They are easily recognizable and thus can also be used to find init or main.

Usually, you will also be able to recognize the huge while (true) { [...] } loop that repeatedly calls the user-defined loop callback (or its inlined instructions).

Discover Strings Link to heading

As Ghidra does not automatically label unreferenced strings, you can force detection of other strings using the menu entry Search > For strings…. This feature works similar to binutils’ strings command.

AVR Calling Convention Link to heading

As someone used to the various x86 and x64 calling conventions (like me), the description of the calling convention used by GCC-AVR appears rather unfamiliar. To sum it up:

  • Single-byte parameters such as char and uint8_t are passed in single registers, starting register R24, followed by R22, R20, and so on.
  • Two-byte parameters such as int and pointers (e.g. char*) are passed in register pairs, starting with R25R24, R23R22, R21R20, and so on.
  • A similar algorithm is used for larger arguments. These series continue down to R8, other arguments are passed in memory.
  • Return values are passed in registers, again starting with R24 for single-byte values, R25R24 for two-byte values and so on.

With this knowledge we can now understand an invocation like this:

ldi        R24 ,0x14
ldi        R25 ,0x1
call       FUN_code_00016c
ldi        R24 ,0x30
ldi        R25 ,0x1
call       FUN_code_00016c

These lines appear to correspond to invocations such as:

FUN_code_00016c((void*)0x114);
FUN_code_00016c((void*)0x130);

Unfortunately, Ghidra did not detect this and shows FUN_code_00016c as a void function without parameters. We can fix this by right-clicking the function name and choosing Edit Function. Then we add the missing parameter:

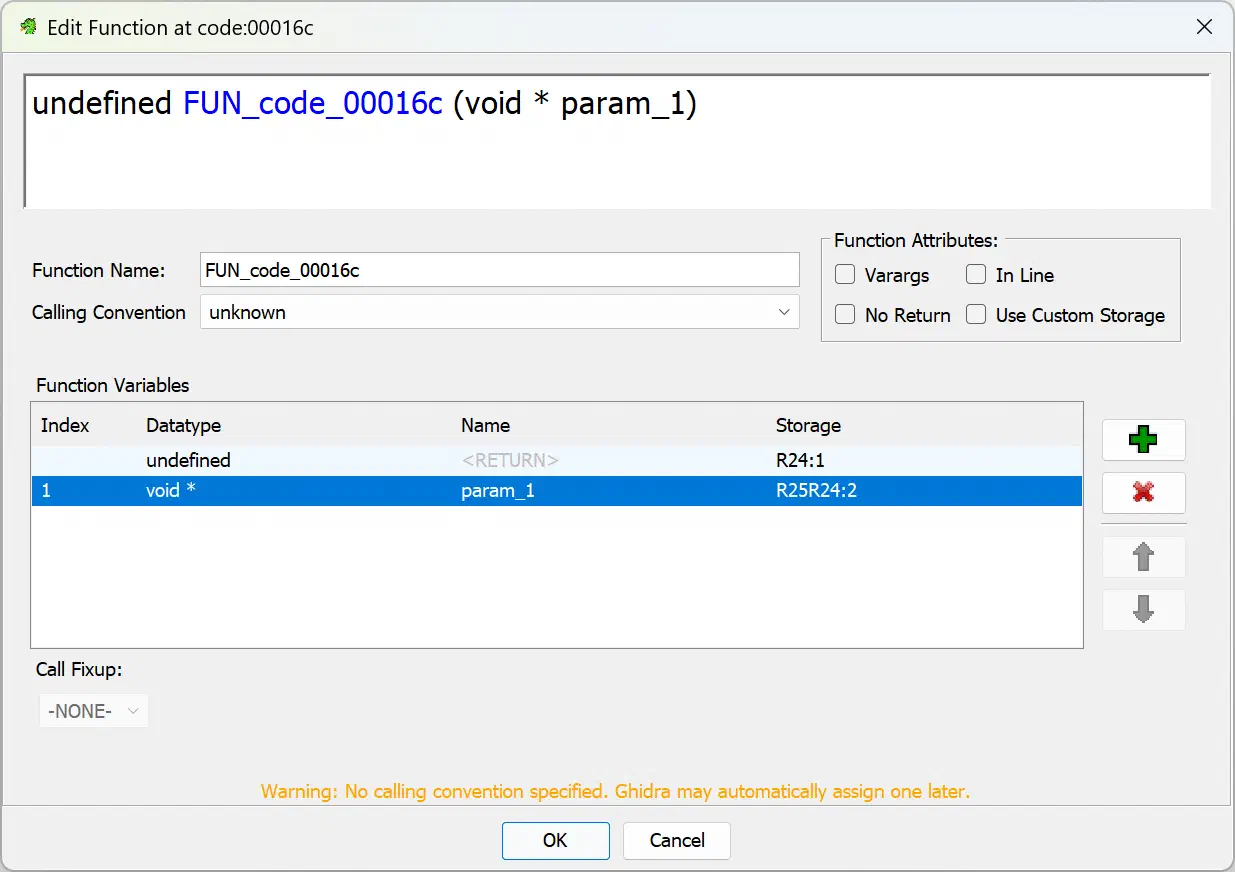

Edit function FUN_code_00016c

Other Things I Noticed Link to heading

  • Functions that are usually passed strings probably have the signature char* instead of void*.
  • If the decompiled code contains many expressions like CONCAT11(DAT_mem_0101,DAT_mem_0100) (a CONCAT11 of to adjoint memory addresses), then the lower address (here DAT_mem_0100, mem:0100) likely marks the beginning of a two-byte value (e.g. int or void*).

Final Result Link to heading

After a bit of fiddling and renaming things, I ended up with the following code for the main function:

void main() {
  // [...]

  Serial_write("ASCII Table ~ Character Map");
  Serial_write("\r\n");
  R25R24 = CONCAT11(counter._1_1_,(byte)counter);
  while( true ) {
    counter = R25R24;
    FUN_code_0000ff(&CHAR_00h_mem_015d);
    Serial_write(", dec: ");
    R13R12 = counter;
    bVar1 = -(CARRY1(counter._1_1_,counter._1_1_) != false);
    R15R14 = CONCAT11(bVar1,-CARRY1(counter._1_1_,counter._1_1_));
    if ((bVar1 & 128) != 0) {
      FUN_code_0000ff(&CHAR_00h_mem_015d);
    }
    Serial_print();
    Serial_write(", hex: ");
    R25R24 = CONCAT11(-(CARRY1(counter._1_1_,counter._1_1_) != false),
                      -CARRY1(counter._1_1_,counter._1_1_));
    Serial_print(R25R24,counter,16);
    Serial_write(", oct: ");
    R25R24 = CONCAT11(-(CARRY1(counter._1_1_,counter._1_1_) != false),
                      -CARRY1(counter._1_1_,counter._1_1_));
    Serial_print(R25R24,counter,8);
    Serial_write(", bin: ");
    R25R24 = CONCAT11(-(CARRY1(counter._1_1_,counter._1_1_) != false),
                      -CARRY1(counter._1_1_,counter._1_1_));
    Serial_print(R25R24,counter,2);
    Serial_write("\r\n");
    if ((byte)counter == 126 && counter._1_1_ == (byte)(R1 + ((byte)counter < 126))) break;
    R25R24 = counter + 1;
  }
  do {
    /* WARNING: Do nothing block with infinite loop */
  } while( true );
}

In this case, we’ve come close enough to the original code to understand what it’s doing - use counter to loop over all values from 0 to 126 and print the decimal, hexadecimal, octal and binary representation of each character.

Cross-Referencing an ELF Link to heading

At this point I have to reveal that I cheated a bit: I figured out most of the presented information by cross-referencing my dumped binary with an ELF file containing debug symbols. You could argue that this is hindsight, and you would be right. But my goal in this post was to convey a few patterns that can help you analyze unknown binaries.

However, if you are in the comfortable position of possessing source code, you can generate such an ELF file by running Sketch > Export Compiled Binary from the Arduino IDE. The ELF file will contain debug symbols and can be directly loaded into Ghidra (again choosing the atmega328 processor definition). You can even skip the step of refining the memory map as the ELF file will contain the corresponding meta information.

This methodology might also be helpful for you if you analyze an unknown sample: Write some experimental code, compile it to an ELF file, analyze both the ELF and the compiled binary, cross-reference symbols and extract patterns that might help you with the unknown binary.

Conclusion Link to heading

Reverse engineering ATmega328P binaries with Ghidra is possible, but still very cumbersome. Especially Ghidra’s decompiler does not appear to correctly represent some of the peculiarities of this 16-bit architecture. Nevertheless, in simple cases, it may be possible to obtain a decent result. And additionally, this project was quite fun for me personally, as it gave me an insight into a different processor architecture than I’m used to working with.


  1. Note that this dumps the entire flash, even if the program only occupies a fraction of it. The remaining image might also contain data from previous uses, unrelated to the current program. ↩︎

  2. Ghidra in theory also supports Intel HEX files, but I experienced problems mapping additional memory sections to the HEX file. ↩︎
